Egg-Cellent Egg Carton

Packaging Design

Fall 2023

What if Egg Cartons where…

  • Easy to transport
  • Reusable
  • Modern, chic, and fun

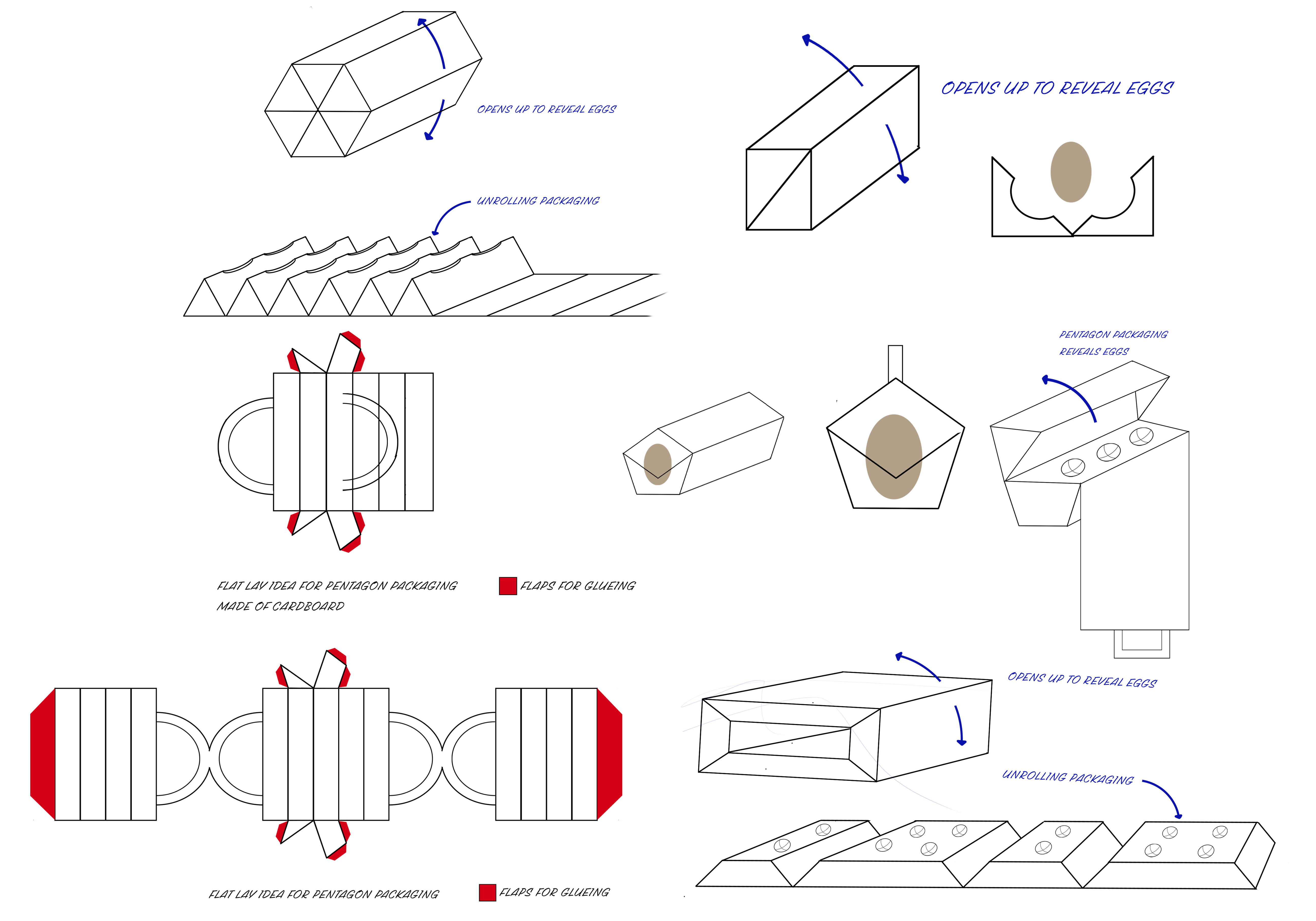

Ideation

Prototyping

Final Assembly

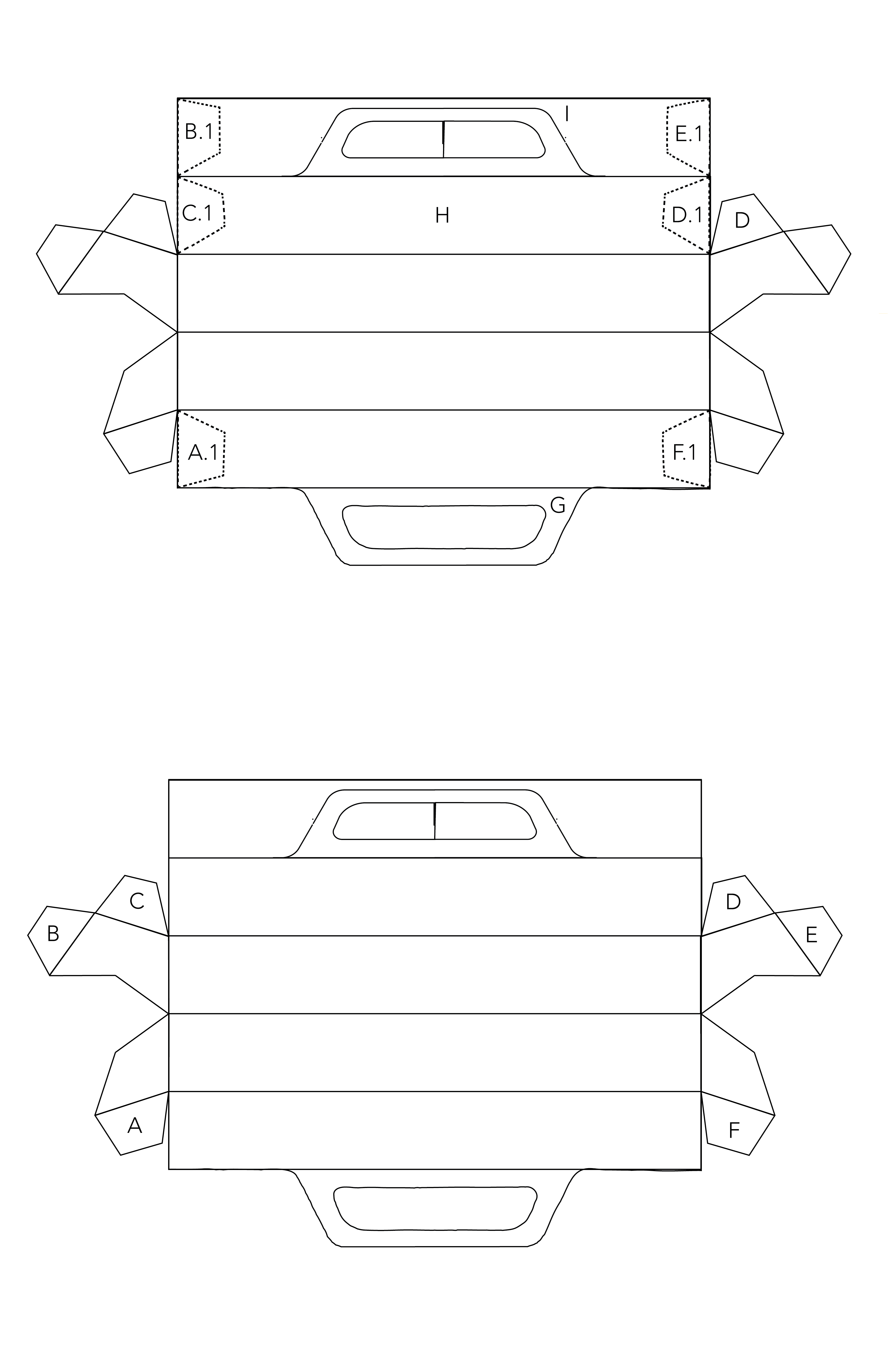

Directions for Inside & Outside Piece

  1. Glue flap A down to A.1 on
  2. Glue flap F down to F.1
  3. Glue flap C down to C.1
  4. Glue flap D down to D.1
  5. Glue flap B down to B.1
  6. Glue flap E down to E.1

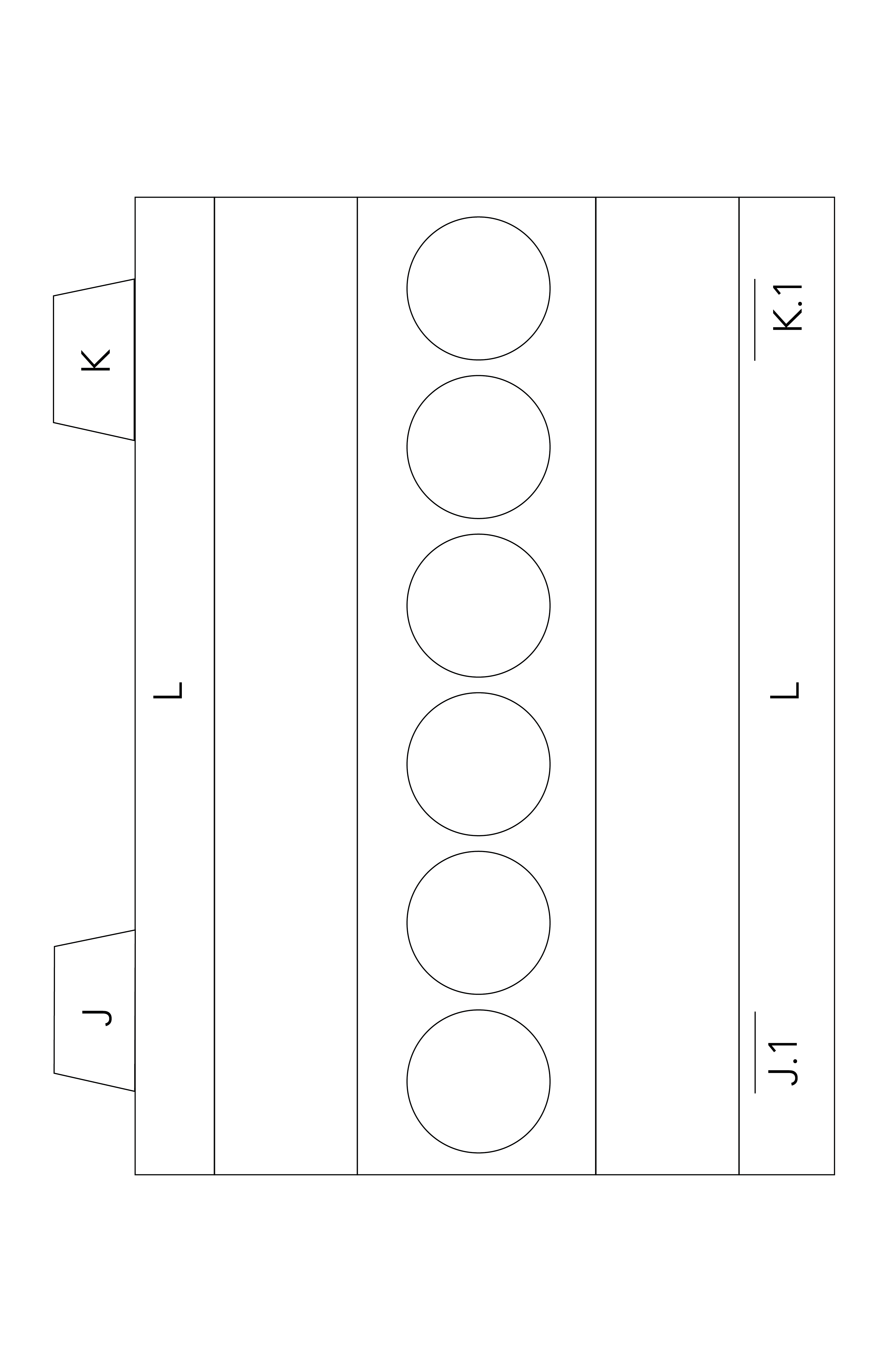

Internal Piece Direction

  1. Bring the two L sides together, and insert J into J.1 and K into K .1

Directions for Placing Internal Piece Into Inside/Outside Piece

  1. Now that the outside/inside piece is made, place the internal piece into the outside/inside piece, making sure the L surface is on the H surface.
  2. Tuck handle G Inside of the egg carton so it is in between surface I and the inside piece
Top- Inside
Bottom- Outside
Internal

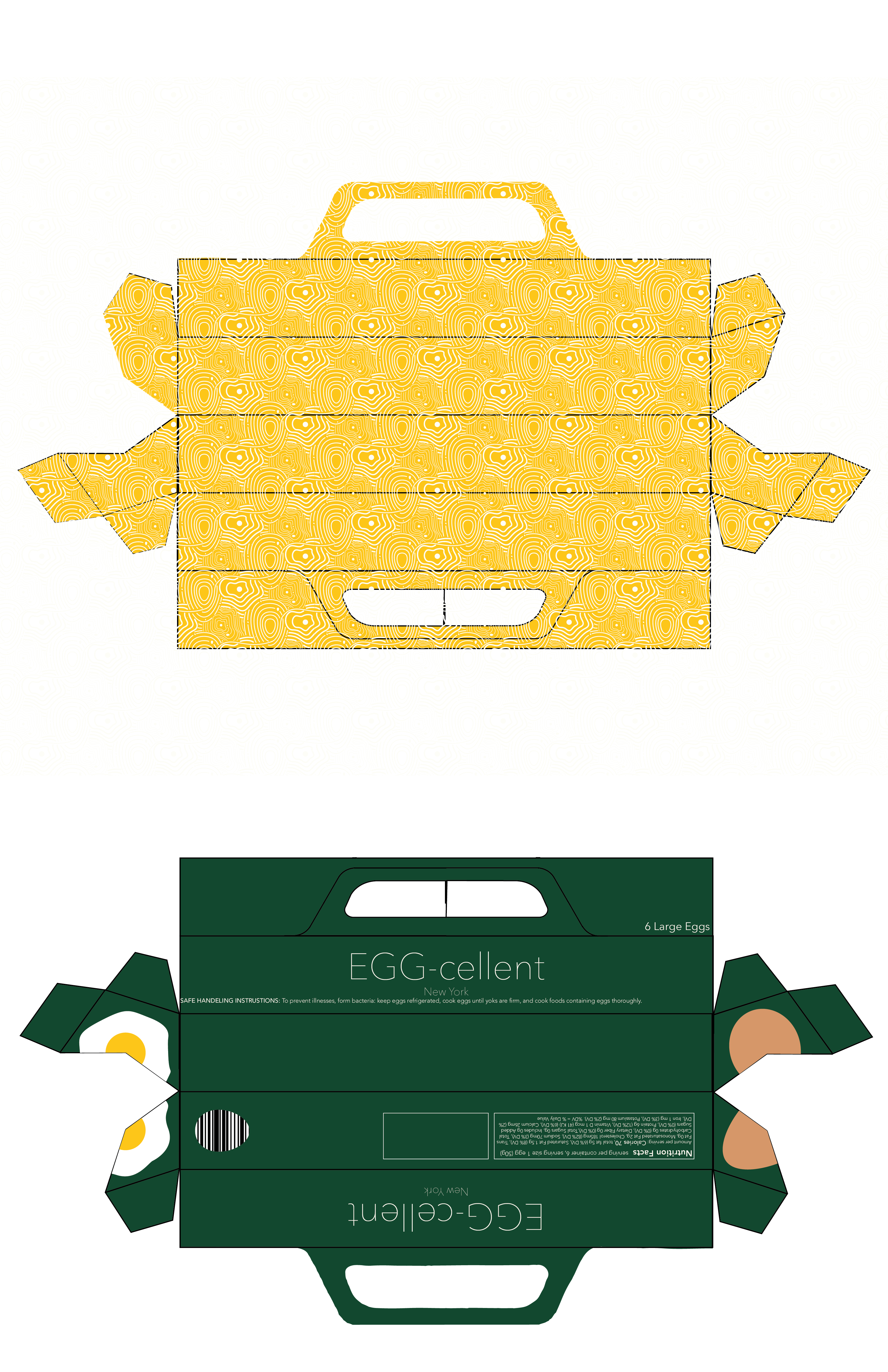

Final Graphics for Flat Lay

Top- Inside
Bottom- Outside

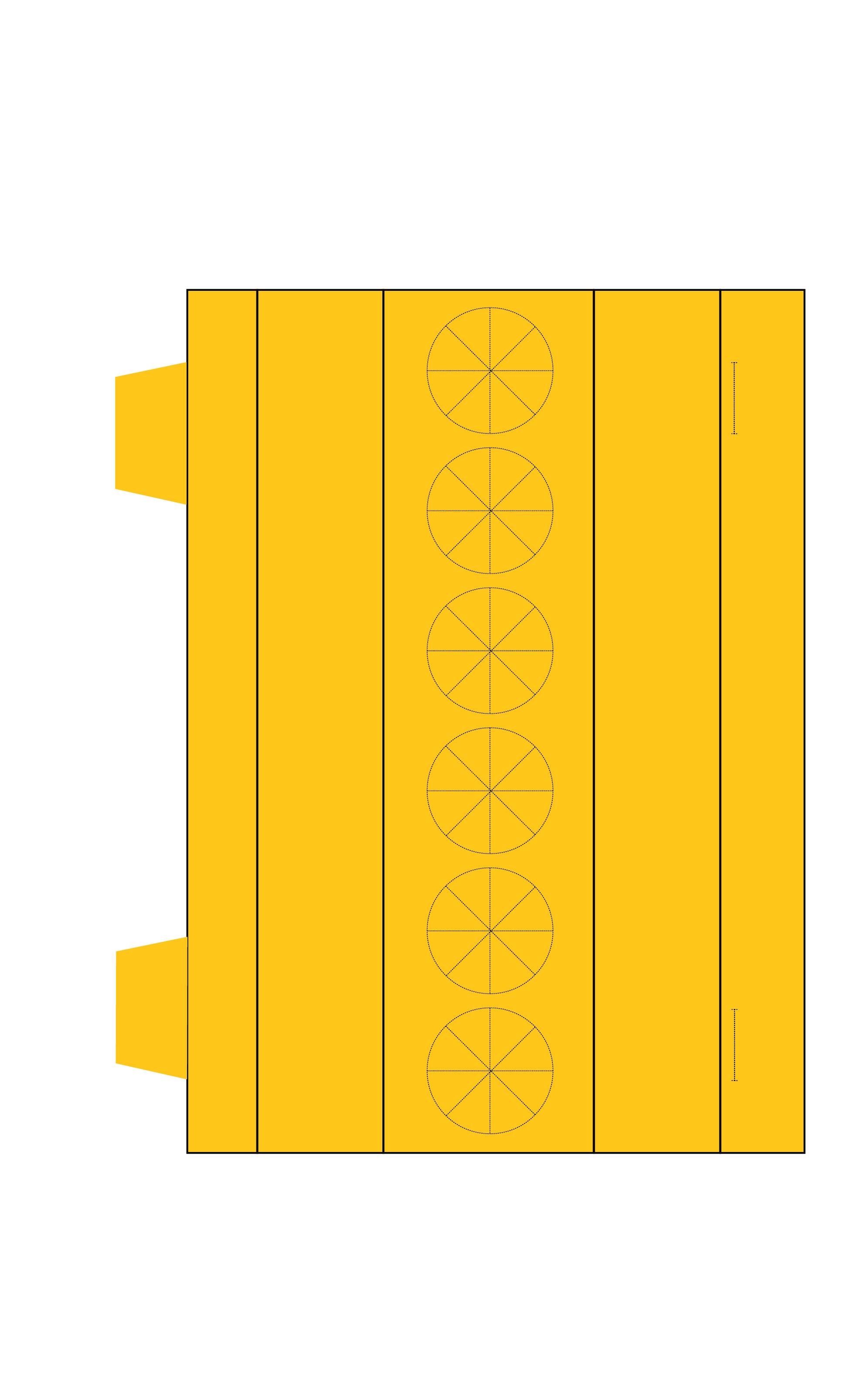

Internal

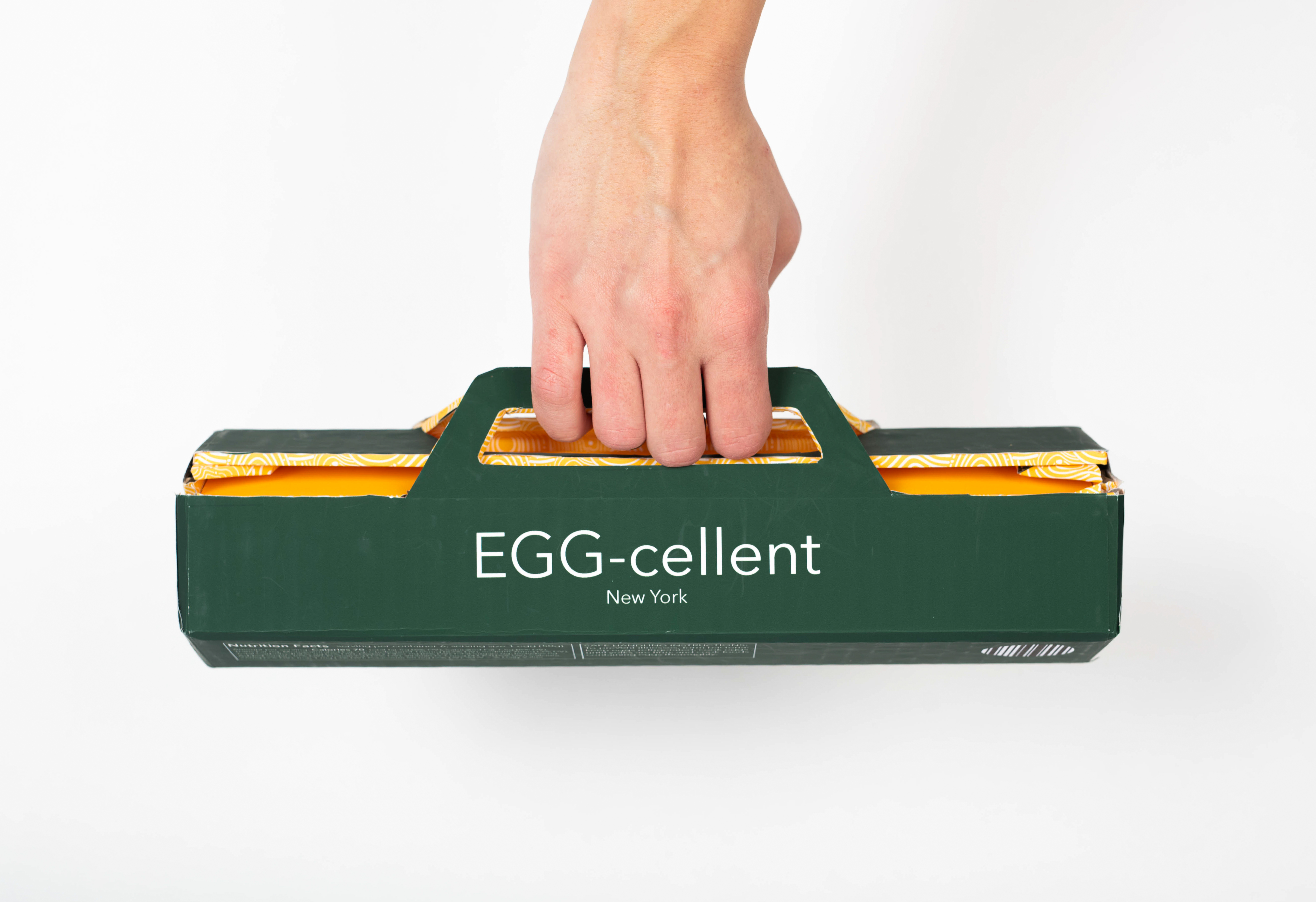

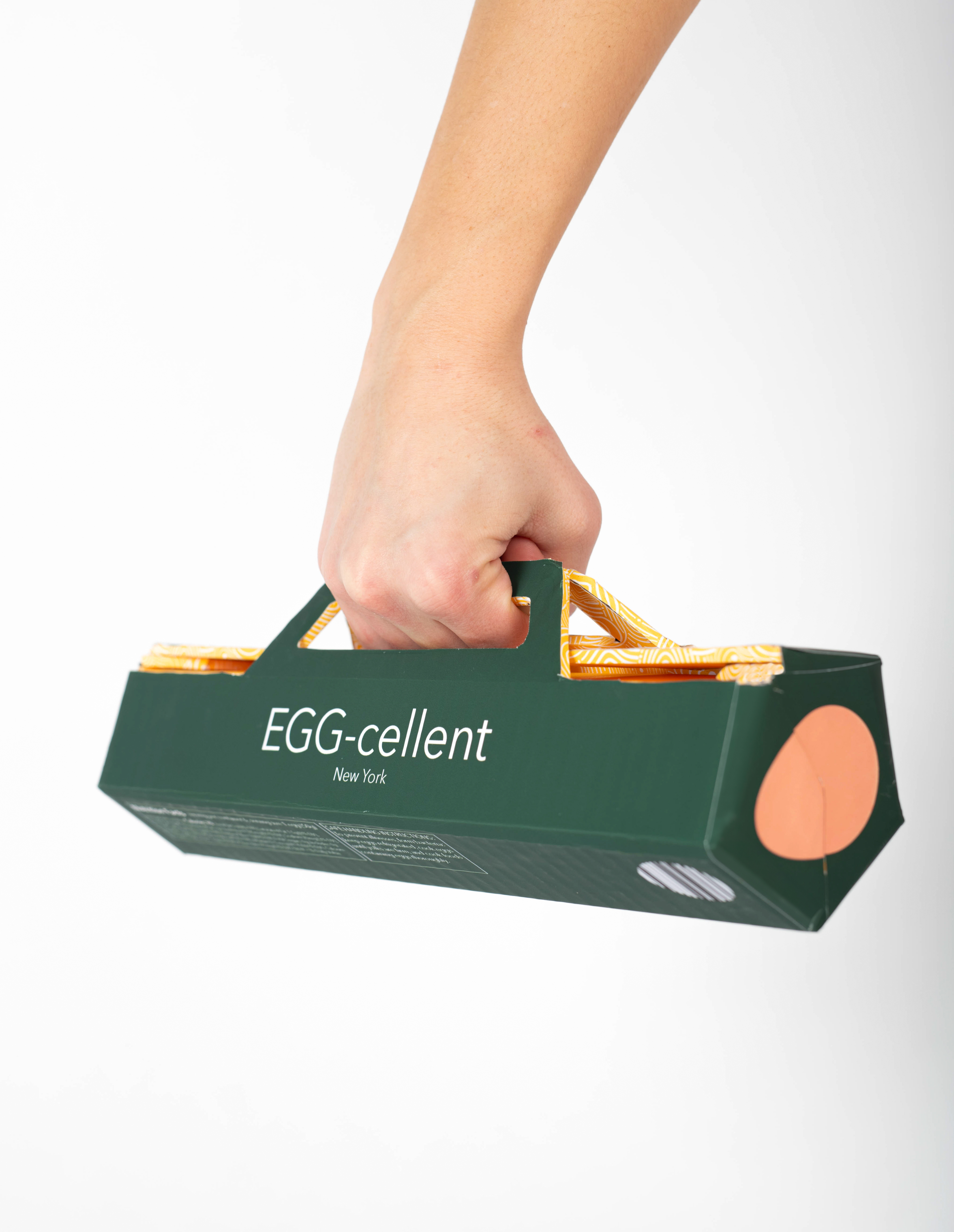

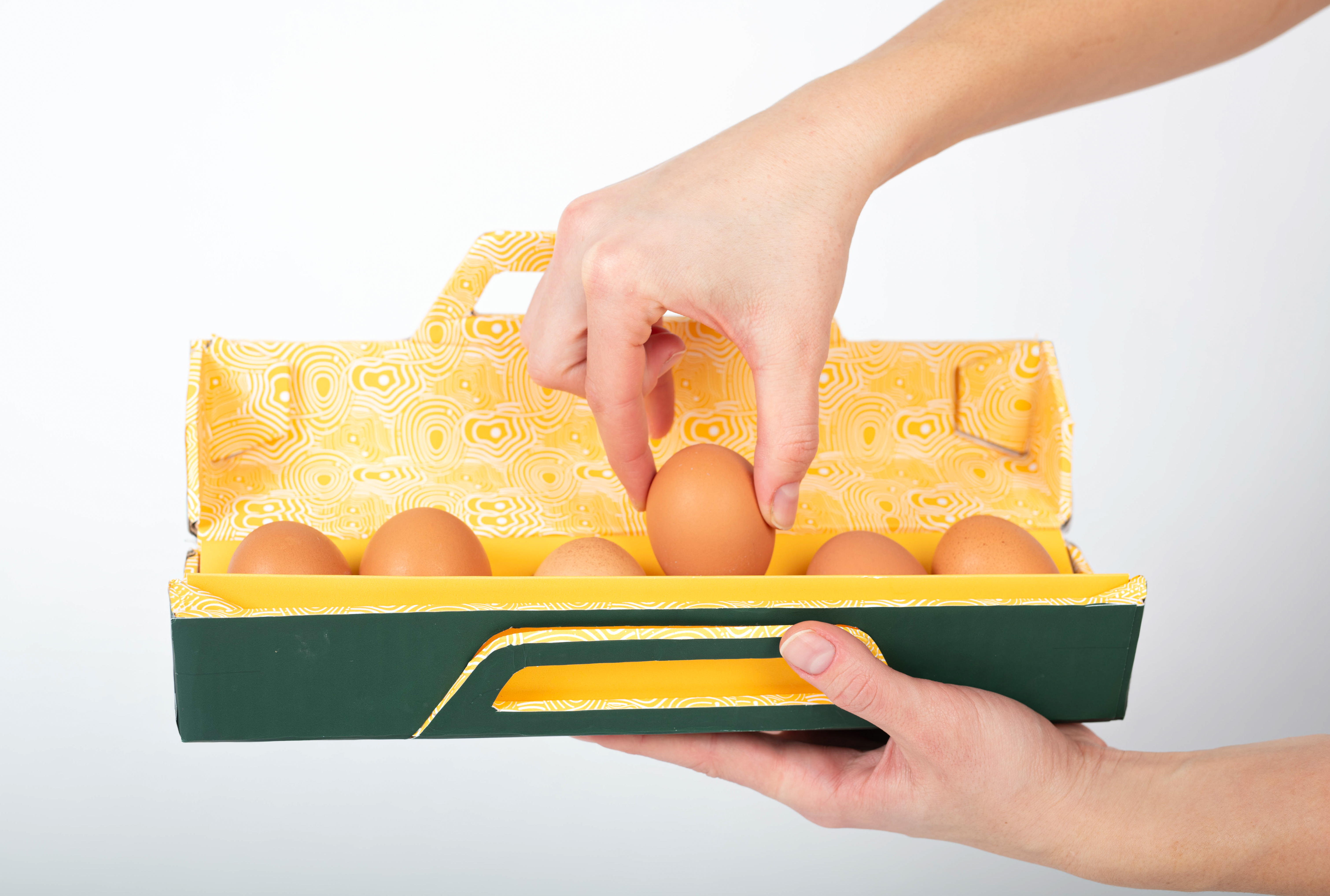

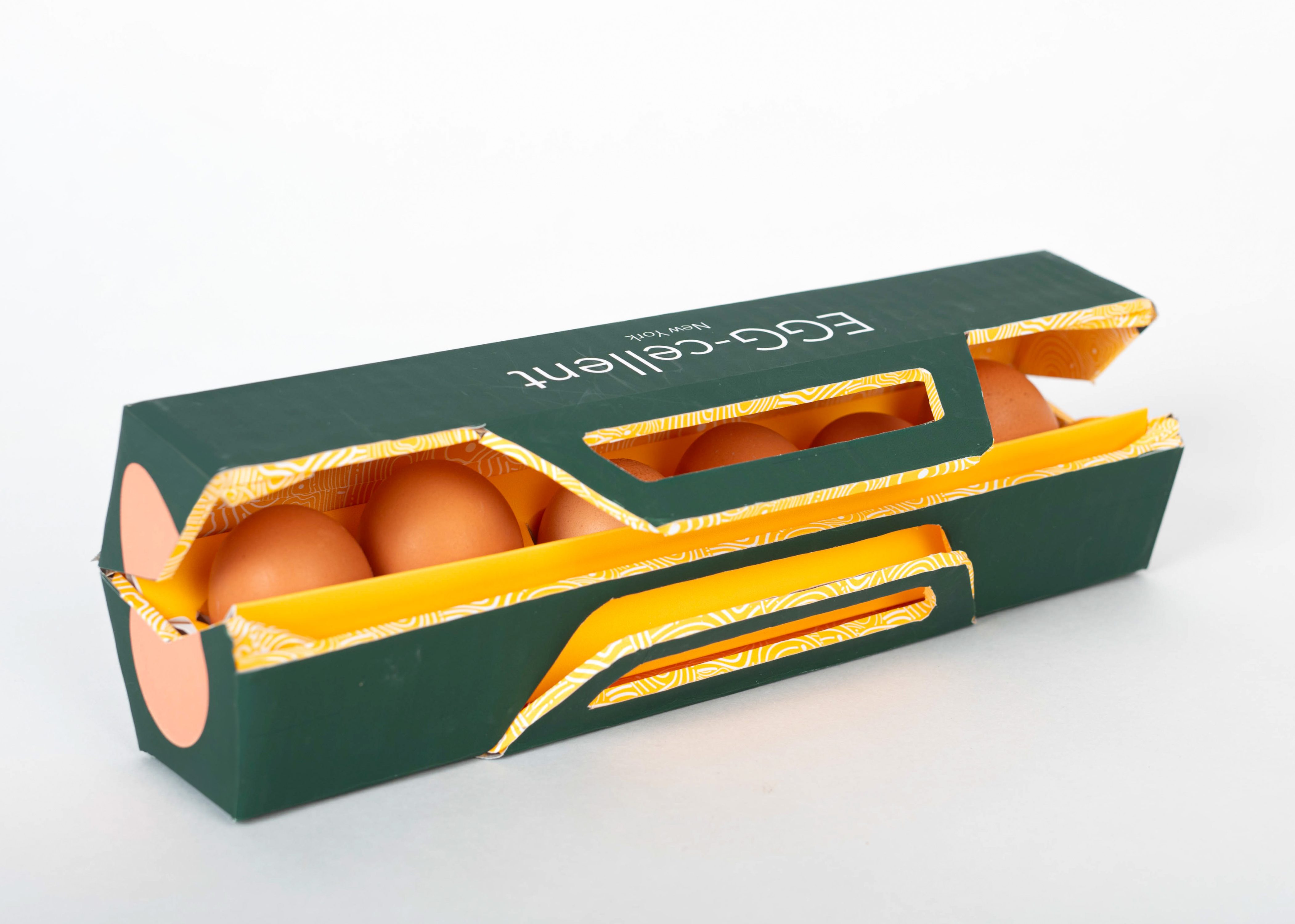

Final Egg Carton
